Technical Specifications
Full specification data for the Risen Energy Co Ltd RSM144-9-580BNDG. Contact the manufacturer directly for the most current, verified figures.
| Brand | Risen Energy Co Ltd |
|---|---|
| Model | RSM144-9-580BNDG |
| Wattage | 580W |
| Dimensions (W × H) | 1134mm × 2278mm |
| NOCT | 44°C |
| Temperature Coefficient | -0.29/°C |
| Product Warranty | 15 years Product Warranty, 30 years Linear Power Warranty |
| Manufacturer Logo |  |

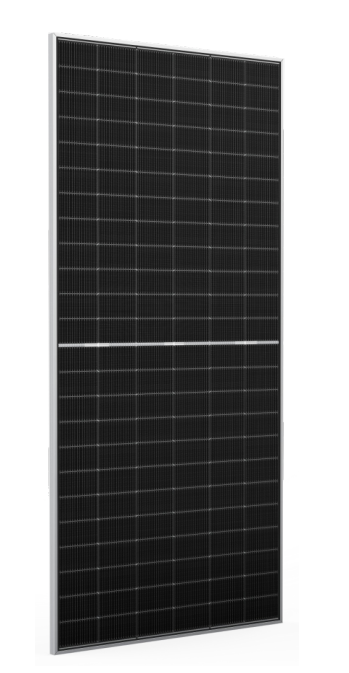

| Product Image |  |
Performance & Electrical Specifications
Guaranteed minimum power output over the 30-year warranty period. Year 1 drops to 99% (light-induced degradation), then degrades at approximately 0.4%/year.
Electrical Specifications STC: 1000 W/m² · 25°C · AM1.5
| Open Circuit Voltage (Voc) | 52.22V |
|---|---|
| Max Power Voltage (Vmpp) | 43.68V |
| Short Circuit Current (Isc) | 14.04A |
| Max Power Current (Impp) | 13.28A |
| Temperature Coefficient (Voc) | -0.25%/°C |
| Max Series Fuse Rating | 30A |
Disclaimer: Solar Proof endeavours to maintain accurate product information but does not guarantee the correctness of any specifications shown. Contact Risen Energy Co Ltd directly for verified, current data.
